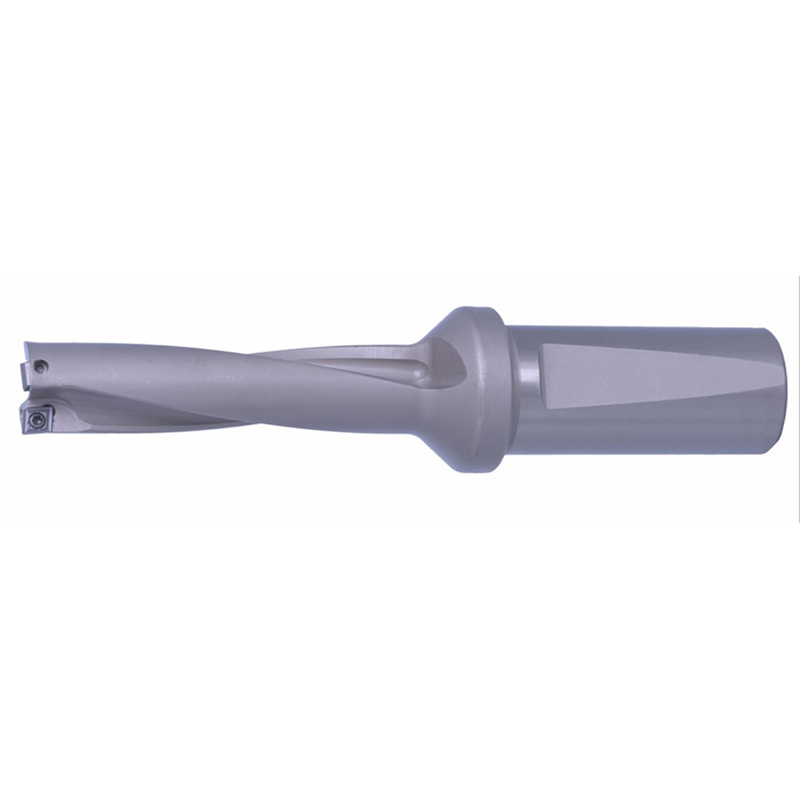

5D WD Drill Bits
You can rest assured to buy 5D WD Drill Bits from our factory and we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.
Send Inquiry
Product Description
As the professional manufacturer, we would like to provide you 5D WD Drill Bits. And we will offer you the best after-sale service and timely delivery.We recruit passionate and dedicated technicians, who not only enjoy their career, but continue to train and grow their skills year-round. Constant training and education enables us to stay on top of industry trends，so we can offer top notch services every time you need us.
5D WD Drill Bits Specification
| WDblade-5D | |||||||
| model | size | blade | screw | wrench | |||
| Blade diameter | Total lengthL | effective lengthH | shank diameterd | ||||
| WD18.5-5D-C25 | 18.5 | 167 | 96 |
|
WDXT063006 | M2.2X6 | T7 |
| WD19-5D-C25 | 19 | 169 | 98 |
|
|||
| WD19.5-5D-C25 | 19.5 | 172 | 101 |
|
|||
| WD20-5D-C25 | 20 | 174 | 103 |
|
|||
| WD20.5-5D-C25 | 20.5 | 177 | 106 |
|
|||
| WD21-5D-C25 | 21 | 179 | 108 |
|
|||
| WD21.5-5D-C25 | 21.5 | 182 | 111 |
|
|||
| WD22-5D-C25 | 22 | 184 | 113 |
|
|||
| WD22.5-5D-C25 | 22.5 | 187 | 116 |
|
|||
| WD23-5D-C25 | 23 | 192 | 118 |
|
WDXT073506 | M2.5X6 | T8 |
| WD23.5-5D-C25 | 23.5 | 195 | 121 |
|
|||
| WD24-5D-C25 | 24 | 197 | 123 |
|
|||
| WD24.5-5D-C25 | 24.5 | 200 | 126 |
|
|||
| WD25-5D-C25 | 25 | 202 | 128 |
|
|||
| WD26-5D-C32 | 26 | 213 | 133 |
|
|||
| WD27-5D-C32 | 27 | 218 | 138 | ||||
| WD28-5D-C32 | 28 | 223 | 143 | ||||
| WD29-5D-C32 | 29 | 230 | 149 | WDXT094008 | M3.5X8 | T15 | |
| WD30-5D-C32 | 30 | 248 | 154 | ||||
| WD31-5D-C32 | 31 | 253 | 159 | ||||
| WD32-5D-C32 | 32 | 258 | 164 | ||||
| WD30-5D-C40 | 30 | 248 | 154 | 40 | |||
| WD31-5D-C40 | 31 | 253 | 159 | ||||
| WD32-5D-C40 | 32 | 258 | 164 | ||||
| WD33-5D-C40 | 33 | 263 | 169 | ||||
| WD34-5D-C40 | 34 | 268 | 174 | ||||
| WD35-5D-C40 | 35 | 273 | 179 | 40 | |||
| WD36-5D-C40 | 36 | 278 | 184 | ||||
| WD37-5D-C40 | 37 | 290 | 190 | WDXT125012 | M5X11 | T20 | |
| WD38-5D-C40 | 38 | 295 | 195 | ||||
| WD39-5D-C40 | 39 | 300 | 200 | ||||
| WD40-5D-C40 | 40 | 305 | 205 | ||||
| WD41-5D-C40 | 41 | 310 | 210 | 40 | |||
| WD42-5D-C40 | 42 | 315 | 215 | ||||
| WD43-5D-C40 | 43 | 320 | 220 | ||||
| WD44-5D-C40 | 44 | 325 | 225 | ||||
| WD45-5D-C40 | 45 | 330 | 230 | ||||
| WD46-5D-C40 | 46 | 335 | 235 | WDXT156012 | M6X15 | T25 | |
| WD47-5D-C40 | 47 | 340 | 240 | ||||
| WD48-5D-C40 | 48 | 345 | 245 | ||||
| WD49-5D-C40 | 49 | 350 | 250 | ||||
| WD50-5D-C40 | 50 | 355 | 255 | 40 | |||
| WD51-5D-C40 | 51 | 360 | 260 | ||||
| WD52-5D-C40 | 52 | 365 | 265 | ||||
| WD53-5D-C40 | 53 | 370 | 270 | ||||
| WD54-5D-C40 | 54 | 375 | 275 | ||||
| WD55-5D-C40 | 55 | 380 | 280 | ||||
